Overview
Quick Details
- Place of Origin:
-
Shanghai, China
- Brand Name:
-
Panda
- Model Number:
-
DN200
- Type:
-
Multi-jet meters, Ultrasonic meters, Prepaid water meters, Ultrasonic water meters
- Power supply:
-
3.6/24VDC Battery powered
- Service life of battery:
-
≥10 years
- Accuracy:
-
Class 1
- Output:
-
RS485/OCT
- Flange connection:
-
DIN1092-1/ANSI B16.5
- Max. working pressure:
-
1.6Mpa
- Temperature class:
-
T30
- Body material:
-
Stainless Steel 304
- Protection class:
-
IP 68
Supply Ability
- Supply Ability:
- 500 Set/Sets per Month
Packaging & Delivery
- Packaging Details
- The ultrasonic water meter will be packed in carton.
- Port
- Shanghai

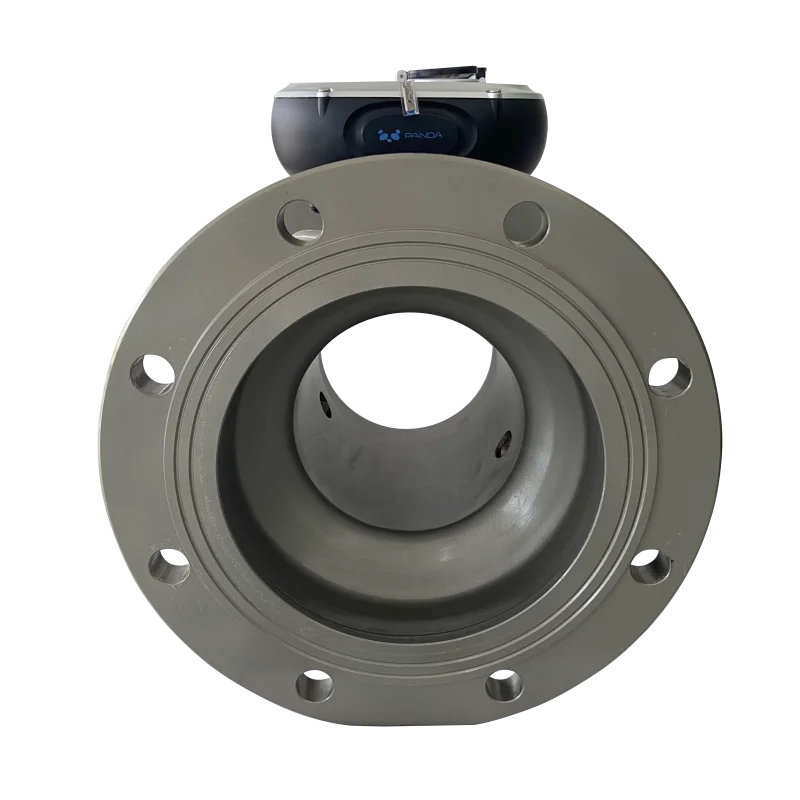

- Picture Example:
-
- Lead Time :
-
Quantity(Sets) 1 - 10 11 - 20 >20 Est. Time(days) 7 15 To be negotiated

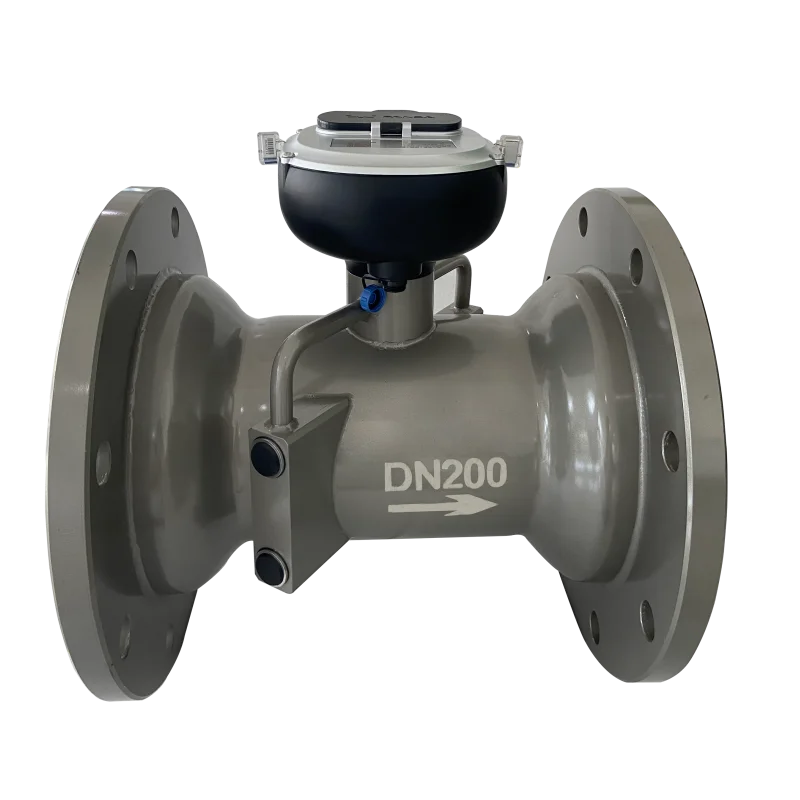

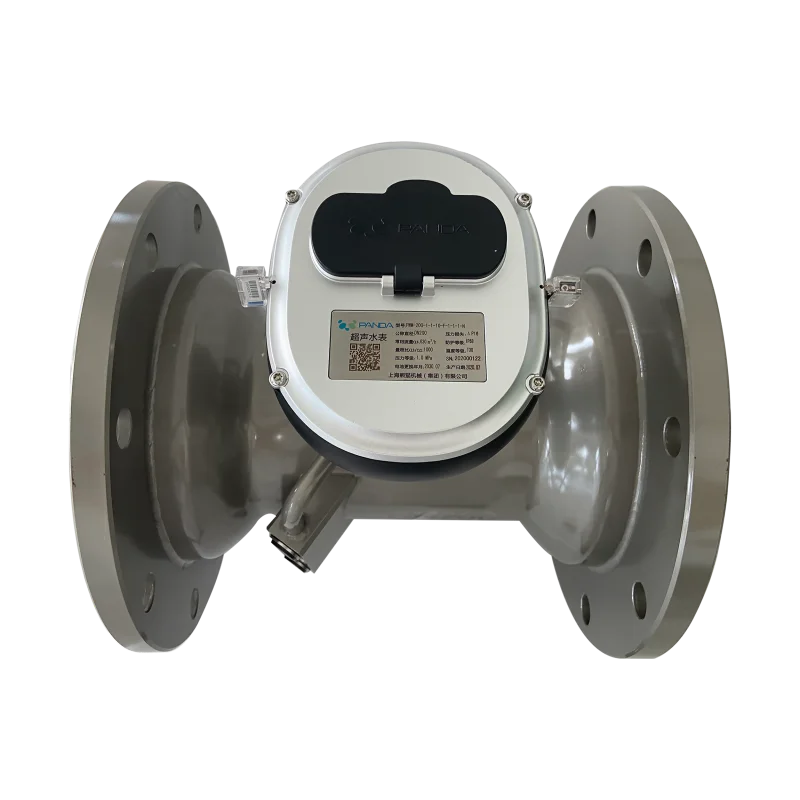

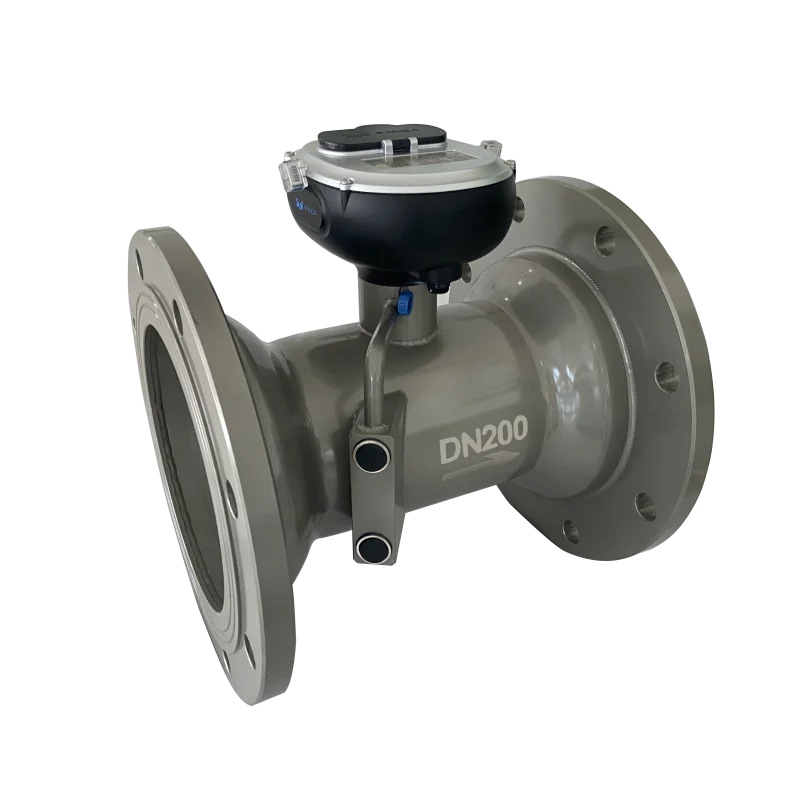

Product Description
Specification
Max.Working Pressure | 1.6Mpa |
Temperature Class | T30、T50、T70、T90（default T30） |
Accuracy Class | ISO 4064, Accuracy Class 2 |
Body Material | Stainless SS304（opt. SS316 or SS316L) |
Battery Life | 2D size Li-battery ,up to 15 years (consumption ≤0.5mW) |
Protection Class | IP68 |
Environmental Temp. | -40 ~ 70℃，≤100%RH |
Pressure Loss | ΔP10、ΔP16（based on different dynamic flow） |
Climatic And Mechanical Environment | Class O |
Electromagnetic Class | E2 |
Communication Output | RS485 (baud rate adjustable) Pulse（default 2ml/pulse, changeable） Opt. NB-IOT, GPRS |

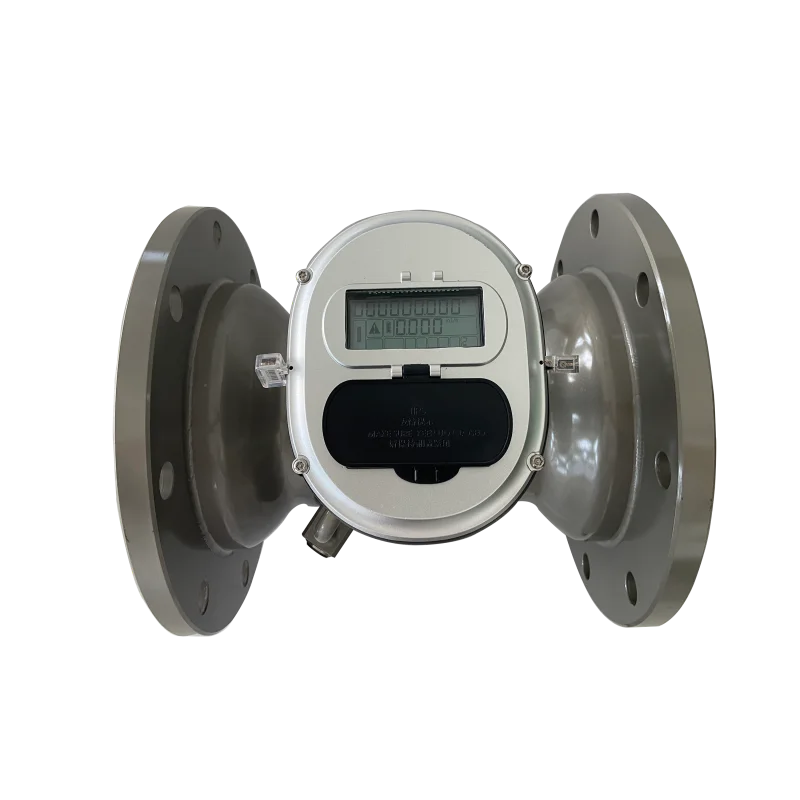

Display | 9 digit LCD display volume, flow rate, pressure, error alarm, flow direction, low battery power alarm, output |
RS485 | Baud rate 2400bps,4800bps,9600bps,19200bps(default 9600bps,Modbus-RTU) |
Connection | Clip or Flange |
Flow Profile Sensitivity Class | U3/D0 or U0/D0 |
Measuring Frequency | No less than 1 second/time |
Data Logger | Store the latest 10 years’ data including Day, Month and Year The data can be permanently saved even after the loss of power. |
Frequency | 1-4 times/second |

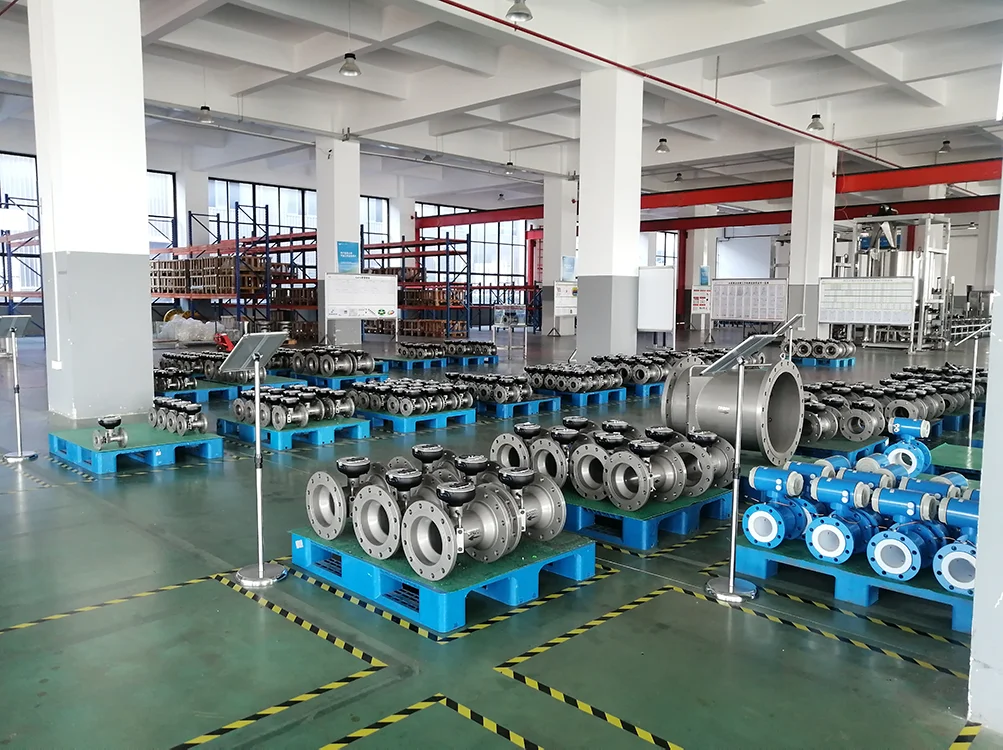

Company Profile
Shanghai Panda Machinery(Group) Co.,Ltd is a high-tech enterprise in Shanghai,No.1 market shares of building pumps in China. President Xuecong, Chi founded the company in 2000. Through 20 years development, We have been a leading group including from researching, manufacturing pumps, complete equipments,water meters, flow meters to intelligent management platform which is consist of raw water monitoring, water supply control, DMA, pipe GIS, Secondary water supply and Billing. We have been providing advanced smart watering solutions for thousands of water supply companies. Also we take proud of that our high-tech products are servicing water supply and drainage, municipal infrastructure, HAVC, chemicals, electrics, mining, thermal energy efficiency monitoring fields etc.

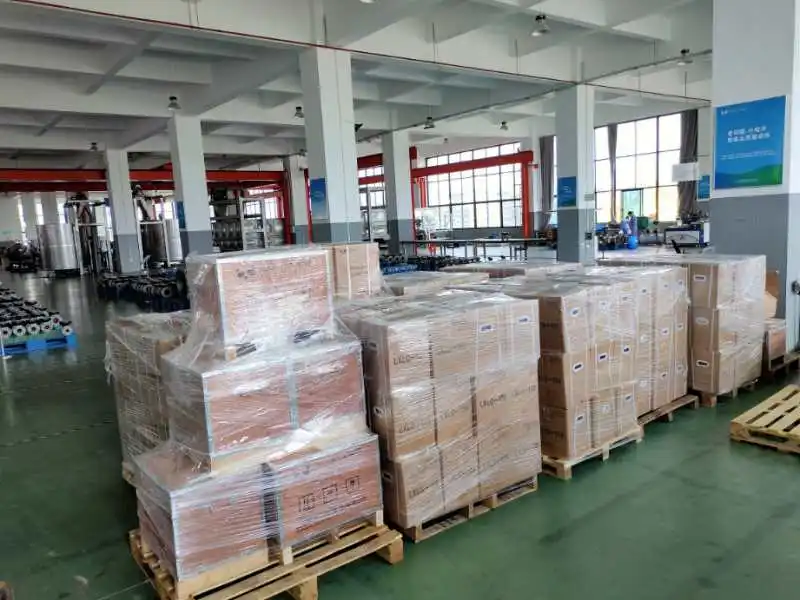

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Certificates
FAQ
Q: Why choose you?
A: We have professional team of workers, service and inspection, and we have our own factory.
Q: Could you print our company logo on the nameplate and package?
A: Yes, we can.
Q: Where is your factory located? How can I visit there?
A: CN , Shanghai , Shanghai, , 6355 East Yinggang Road, Qingpu Dist. All our clients, from home or abroad, you are most welcome to visit us!
Q: How many colors of body are available?
A: We have own spraying equipment, so we can do custom colors as your special request. So any Pantone color is available. You just need to tell me your favorite Pantone color.
Q: Will you save my mold for future orders?
A: Yes. Once we create your mold. you can use it as many times as you like at no cost for future orders. As long as you keep the same design there is never any new molding fees.
Q: Do you offer customized packing?
A: Yes! All of our products can be packed as your requirement.
